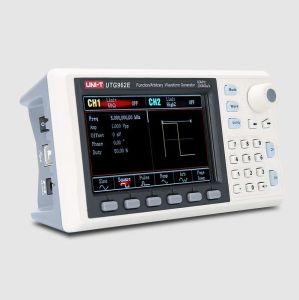

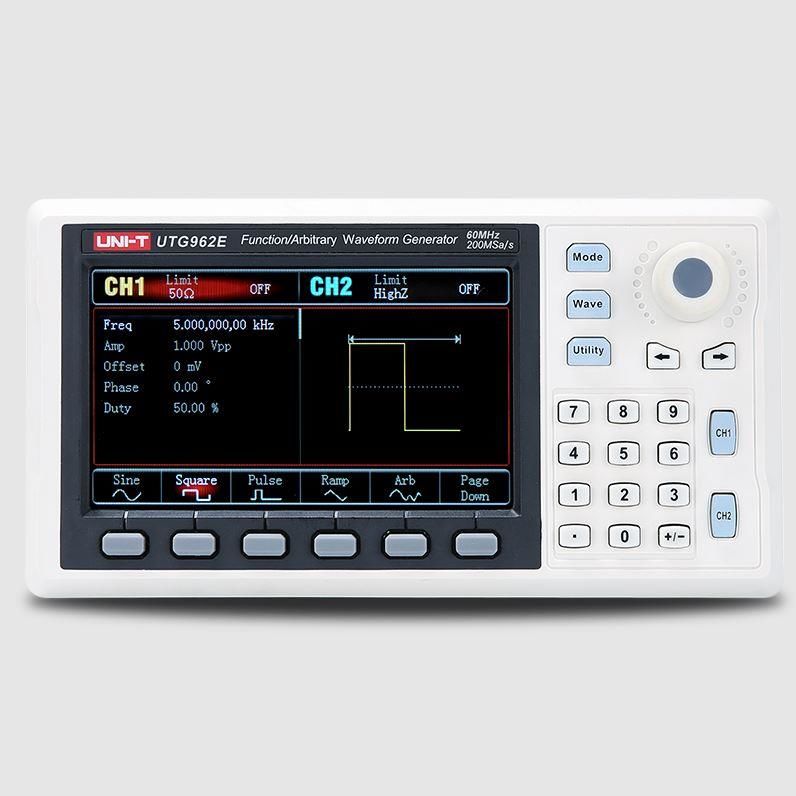

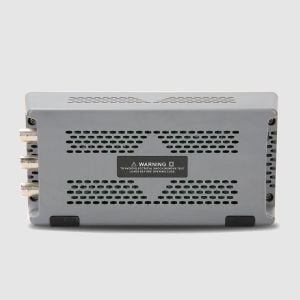

Unı-t UTG962E 2x60 Mhz Fonksiyon Jeneratörü
Unı-t UTG962E 2x60 Mhz Fonksiyon Jeneratörü

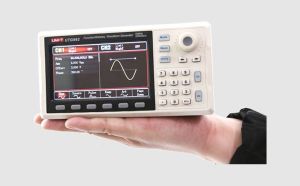

UTG900E Serisi, el tipi mini ekonomik, yüksek performanslı,
2x60 Mhz Fonksiyon Jeneratörü. Benzersiz ve en iyisini sağlar
elektronik meraklıları için minimum maliyetle uygun maliyetli çözüm
1μHz'e kadar çözünürlük, mini boyut ve en uygun fiyatlı hafif
jeneratör hattı. Çeşitli senaryolarda test ihtiyaçlarınızı esnek bir şekilde karşılamak,
ve iş ve öğrenme verimliliğinizi tamamen geliştirin.
Standart 2 Kanallı, çoklu dalga formu sinyalleri
Maksimum çıkış frekansı 60MHz, çift kanallı,
çoklu dalga formu sinyalleri:
sinüs dalgası, kare, rampa, darbe, gürültü, DC, keyfi dalga formu
|
Technical Specifications |
||
|
Model |
UTG932E |
UTG962E |
|
Channel |
2 |
|
|
Max frequency |
30MHz |
60MHz |
|
Sampling rate |
200MSa/s |
|
|
Waveform |
Sine wave, square wave, ramp wave, pulse wave, noise, DC, arbitrary wave |
|
|
Working modes |
Output gating, continuous, modulation, frequency sweep |
|
|
Modulation types |
AM, FM, PM, FSK, Line, Log |
|
|
Frequency characteristic |
|
|
|
Sine wave |
|
|
|
Frequency range |
1pHz -30MHz |
1pHz -60MHz |
|
Resolution |
1pHz |
|
|
Accuracy |
within 90 days: 150ppm, within 1 year: 1 100ppm (18°C-28°C) |
|
|
Harmonic distortion(typical value) |
Test condition: output frequency 0dBm |
|
|
DC-5MHz |
)-60dBc |
|
|
5MHz -30MHz |
)-50dBc |
|
|
30MHz -60MHz |
)-40dBc |
|
|
THD(typical value) |
<0.2%(DC-20kHz, 1Vpp) |
|
|
Spurious signal (non- harmonic wave, typical value) |
test condition: output power 0dBm |
|
|
DC-10M Hz, < -70dBc |
||
|
> 10M Hz < -70dBc+6dB/octave |
||
|
Phase noise (typical value) |
10 MHz: -125dBc/Hz (typical, 0dBm, 10kHz deviation) |
|
|
Square wave |
|
|
|
Frequency range |
1pHz-15MHz |
1pHz -20MHz |
|
Resolution |
1pHz |
|
|
Rise/fall time |
< 16ns (typical value, 1kHz, 1Vpp) |
|
|
Overshoot(typical value) |
< 2% |
|
|
Duty ratio |
0.01%-99.99% (limited by current frequency) |
|
|
Symmetry |
1ns + 100ppm of period |
|
|
(50% duty ratio) |
||
|
|
Typical value (1MHz, 1Vpp, 500) |
|
|
Shake (typical value) |
5 MHz: 2ppm + 200ps |
|
|
|
> 5 MHz: 200ps |
|
|
Ramp wave |
|
|
|
Frequency |
1pHz -400kHz |
1pHz -400kMHz |
|
Resolution |
1pHz |
|
|
Nonlinearity |
3%12mV (typical value, 1kHz, 1Vpp, symmetry 50%) |
|
|
Symmetry |
0.0% - 100.0% |
|
|
Pulse wave |
|
|
|
Frequency |
1pHz-15MHz |
1pHz -20MHz |
|
Resolution |
1pHz |
|
|
Pulse width |
*80ns |
|
|
Variable edge |
15ns-8s |
15ns-8s |
|
Overshoot |
< 2% (typical value 1Vpp) |
|
|
Shake |
150ps |
|
|
Gauss noise |
|
|
|
Bandwidth |
30MHz(-3d B) (typical value) |
60MHz(-3d B, typical value) |
|
DC offset |
|
|
|
Range (peak AC+ DC) |
15V(500) |
|
|
1 10V (high resistance) |
||
|
Offset accuracy |
13% of offset set value 1 6% of amplitude value 12mV |
|
|
Arbitrary wave characteristics |
|
|
|
Frequency range |
1pHz - 10MHz |
1pHz-10MHz |
|
Resolution |
1pHz |
|
|
Wave length |
4kpts |
|
|
Vertical resolution |
14bits (symbol included) |
|
|
Sampling rage |
200MSa/s |
|
|
Minimum rising/falling time |
< 20ns typical value |
< 20ns typical value |
|
Shake |
Sns1150ps |
|
|
Nonvolatile storage |
24 waveforms |
|
|
Output characteristics |
||
|
Amplitude range |
10M Hz: 1mVpp-10Vpp; (500) |
|
|
60M Hz: 1mVpp-5Vpp; (500) |
||
|
Accuracy (1kH zsine wave) |
1(3% of set value + 2mVpp) |
|
|
Amplitude flatness (equal to 1kHz sine wave, 1Vpp/500) |
Test condition: typical value (sine wave,2.0Vpp) |
|
|
‹ 100MHz: 10.1dB |
||
|
60M Hz: 10.3dB |
||
|
Waveform output |
|
|
|
Impedance |
500 typical value |
|
|
Insulation |
Maximum 42Vpk to ground wire |
|
|
Protection |
Channel protection |
|
|
Modulation types |
|
|
|
AM modulation |
|
|
|
Carrier wave |
Sine wave, square wave, ramp wave, arbitrary wave |
|
|
Source |
Internal |
|
|
Modulation wave |
Sine wave, square wave, ramp wave, noise, arbitrary wave |
|
|
Modulation frequency |
2mHz -200kHz |
|
|
Modulation depth |
0%-120% |
|
|
FM modulation |
|
|
|
Carrier wave |
Sine wave, square wave, ramp wave, arbitrary wave |
|
|
Modulation wave |
Sine wave, square wave, ramp wave, noise, arbitrary wave |
|
|
Modulation frequency |
1pHz -200kHz |
|
|
Frequency deviation |
DC-15MHz |
DC-30M Hz |
|
PM modulation |
|
|
|
Carrier wave |
Sine wave, square wave, ramp wave, arbitrary wave |
|
|
Modulation wave |
Sine wave, square wave, ramp wave, noise, arbitrary wave |
|
|
Modulation frequency |
2mHz -200kHz |
|
|
Phase deviation |
0°-360° |
|
|
FSK modulation |
|
|
|
Carrier wave |
Sine wave, square wave, ramp wave, arbitrary wave |
|
|
Source |
Internal/external |
|
|
Modulation wave |
Square wave (Duty ratio 50%) |
|
|
Rate |
2mHz-100kHz |
|
|
Frequency sweep |
|
|
|
Carrier wave |
Sine wave, square wave, ramp wave, arbitrary wave |
|
|
Type |
Linear or logarithmic |
|
|
Frequency sweep time |
1ms -500s 1 0.1% |
|
|
Sync signal |
|
|
|
Output level |
TTL compatible |
|
|
Output frequency |
1pHz-2M Hz |
|
|
Output frequency |
500, typical value |
|
|
Coupled mode |
DC |
|
|
Trigger input |
|
|
|
Input level |
TTL compatible |
|
|
Input impedance |
> 10k0, DC coupling |
|
|
Frequency counter |
|
|
|
Input level |
TTL compatible |
|
|
Range of input frequency |
100mHz -100M Hz |
|
|
Accuracy |
151ppm |
|
|
Frequency resolution |
7 digit |
|
|
Coupled mode |
DC |
|
|
General technical specificat |
ions |
|
|
Display type |
4.3 inches TFT LCD |
|
|
Resolution |
480x272 |
|
|
Power supply |
DCSV, 2A |
|
|
Power consumption |
Less than 10W |
|
|
Temperature range |
Operating: 10°C-+40"C |
|
|
Non-operating: -20"C- +60"C |
||
|
Cooling method |
Natural cooling |
|
|
Humidity range |
Below +35°C: 190% relative humidity |
|
|
+35"C- +40°C: 160% relative humidity |
||
|
Altitude |
Operating below 2,000m |
|
|
Non-operating below 15,000m |
||
|
Dimensions |
172mm x90mm x 68mm |
|
|
Net weight |
0.33kg |
|
|
Rough weight |
0.77kg |
|
|
Ordering Information |
||
|
UTG900E Series |
UTG962E(60MHz, 200MS/s, 2-Channel ) |
UTG962E |
|
UTG932E (30MHz, 200MS/s, 2-Channel ) |
UTG932E |
|
|
Standard Accessories |
Power cord conforming to the standard of the destination country |
/ |
|
USB interface cable |
UT- D14 |
|
|
1 BNC-alligator clip cable |
UT- L02 |
|
|
1 BNC cables (1M) |
UT- L45 |
|
