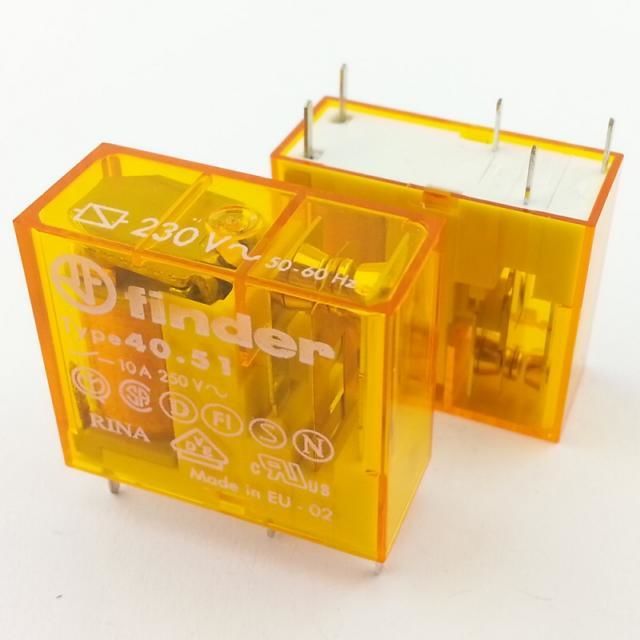

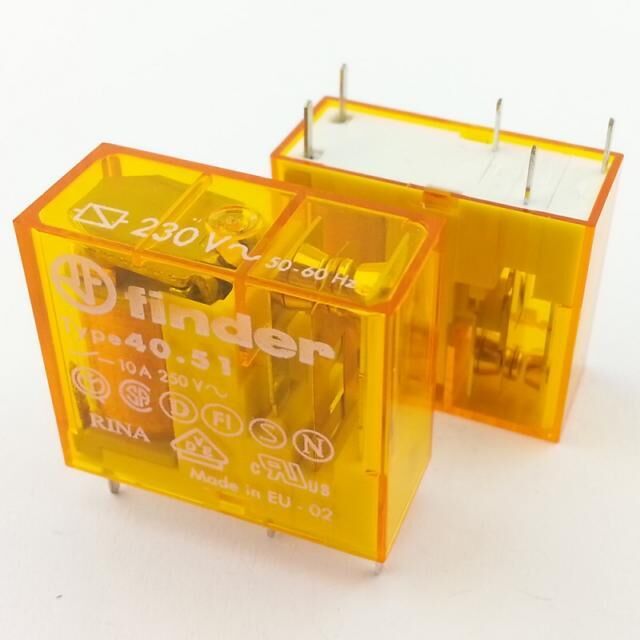

Finder 40.51.8.230.0000 220v 10a Ac Tek Kontak Minyatür Pcb Röle
Bugün sipariş verdiğinizde aynı gün kargoda!
229,82 TL
KDV Dahil
Marka
Kategori
Fiyat
191,52 TL + KDV
Stok Kodu
05063
* 22,99 TL den başlayan taksitlerle!!
Finder 40.51.8.230.0000 220v 10a Ac Tek Kontak Minyatür Pcb Röle
Pcb Tip Soketi 95.15.2
Pcb Tip Soketi 95.05
Ray Tip Soketi 95.75
|
Manufacturer |
FINDER |
|
Type of relay |
electromagnetic |
|
Contacts configuration |
SPDT |
|
Rated coil voltage |
230V AC |
|
AC contacts rating @R |
10A / 250V AC |
|
(at resistive load) |
|
|
DC contacts rating @R |
10A / 30V DC |
|
(at resistive load) |
|
|
Contact current max. |
20A |
|
Switched voltage |
max. 220V DC, max. 400V AC |
|
Relay variant |
miniature |
|
Mounting |
PCB, socket |
|
Coil resistance |
28kΩ |
|
Body dimensions |
29x12.4x25mm |
|
Coil power consumption |
1.2VA |
|
Operating temperature |
-40...85°C |
|
Relay series |
40.51 |
|
Contact material |
AgNi |
|
Terminal pitch |
5mm |
|
Coil current |
5mA |
